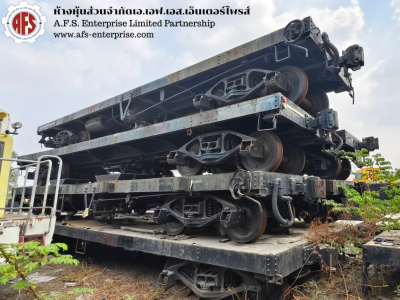

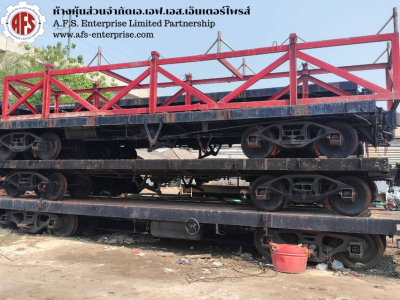

The 10-Meter Bogie Heavy Flat Wagon is a versatile freight wagon engineered for heavy-duty railway transportation. Its open flat-deck design allows easy loading and unloading of oversized cargo, construction materials, steel products, maintenance equipment, and railway components.

Manufactured in the United States and built to withstand demanding freight operations, the wagon features a durable steel structure, bogie suspension system, and a payload capacity of 23 tons. With a gross loaded weight of 33 tons and a maximum axle load of 10.5 tons, it provides a reliable platform for transporting heavy and bulky materials safely and efficiently.

The wagon is configured for 1,000 mm gauge railways and is suitable for freight operators, industrial railways, railway maintenance projects, and infrastructure construction activities. Its simple, rugged design ensures low maintenance requirements and long service life.

Specifications

General

Vehicle Type: Bogie Heavy Flat Wagon

Manufacturer: USA

Manufacturing Year: 1947 – 1951

Track Gauge: 1,000 mm

Bogie Type: Class B

Wheel Arrangement: 2-2

Weight

·       Tare Weight: 10.0 Tons

·       Payload Capacity: 23.0 Tons

·       Gross Weight: 33.0 Tons

·       Maximum Axle Load: 10.5 Tons

Dimensions

·       Width: 2,184 mm

·       Height Above Rail: 2,525 mm

·       Length Over Automatic Couplers: 11,378 mm

·       Length Over Headstocks: 10,578 mm

·       Wagon Floor Length: 10,578 mm

Floor Height Above Rail: 1,086 mm

Bogie Dimensions

·       Bogie Wheelbase: 1,600 mm

·       Bogie Center Length: 7,569 mm

·       Bogie Center to Headstock: 1,505 mm

Performance

·       Maximum Operating Speed: 55 km/h

 Key Features

Heavy-duty steel flat wagon construction

Payload capacity up to 23 tons

Open-deck design for oversized cargo

Suitable for railway materials and industrial equipment

Reliable bogie suspension system

Low maintenance and long service life

Ideal for freight, maintenance, and infrastructure projects

Proven American railway engineering

Applications

·       Railway Infrastructure Projects

·       Rail Maintenance Equipment Transport

·       Industrial Cargo Transportation

·       Steel and Construction Material Haulage

·       Machinery and Equipment Transport

·       Container and Special Cargo Movement
