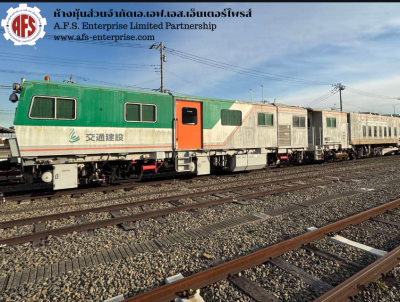

The Plasser & Theurer 09-16 CSM Continuous Action Tamping Machine is designed for high-output railway maintenance operations where productivity, accuracy, and reliability are critical. As one of the most advanced tamping systems in the railway industry, the 09-16 CSM enables continuous tamping operations while maintaining precise track geometry correction and ballast stabilization.

Powered by a DEUTZ TCD2015V8 water-cooled 8-cylinder diesel engine delivering 370 kW at 2,100 RPM, the machine provides exceptional performance for demanding maintenance projects. The advanced ZF 4WG65II EST-25 automatic transmission with torque converter ensures smooth power delivery and efficient operation under varying track conditions.

The main machine weighs approximately 63 tons and is paired with a dedicated recording car weighing 23.2 tons, enabling precise measurement and quality control during maintenance operations. With a maximum travel speed of 80 km/h and a minimum working radius of 200 meters, the 09-16 CSM offers excellent mobility and operational flexibility across railway networks.

Designed for 1,067 mm gauge railways, the machine is ideally suited for national railway operators, metro systems, industrial railways, and infrastructure maintenance contractors seeking professional-grade track maintenance equipment.

Specifications
Main Machine
General
·        Manufacturer: Plasser & Theurer

·        Model: 09-16 CSM

·        Machine Type: Continuous Action Tamping Machine

·        Track Gauge: 1,067 mm

·        Operating Weight: 63.0 Tons

Dimensions
·        Total Length (Including Automatic Couplers): 33,792 mm

·        Machine Length: 19,900 mm

·        Total Height: 3,950 mm

·        Distance Between Bogie Pivots: 13,700 mm

·        Bogie Wheelbase: 1,800 mm

·        Wheel Diameter: 730 mm

Axle Loads
·        Front Bogie Axle Load: 29.1 Tons

·        Satellite Axle Load: 10.6 Tons

·        Rear Bogie Axle Load: 23.3 Tons

Recording Car
Dimensions
·        Total Length: 12,300 mm

·        Wheelbase: 7,000 mm

·        Front Wheel Diameter: 730 mm

·        Rear Wheel Diameter: 730 mm

Axle Loads
·        Front Axle Load: 12.5 Tons

·        Rear Axle Load: 10.7 Tons

Weight
·        Recording Car Weight: 23.2 Tons

 Engine
·        Type: 4-Cycle Diesel Engine

·        Model: DEUTZ TCD2015V8

·        Configuration: Water-Cooled 8-Cylinder

·        Rated Output: 370 kW @ 2,100 RPM

·        Maximum RPM: 2,100 RPM

·        Working RPM: 1,700 RPM

Transmission
·        Type: 3-Speed Gearbox with Torque Converter

·        Model: ZF 4WG65II EST-25 Auto

·        Gear Ratio (1st / 2nd / 3rd): 3.360 / 1.770 / 0.924

Performance
·        Maximum Travel Speed: 80 km/h

·        Minimum Travel Distance: 100 m

·        Minimum Working Radius: 200 m

·        Fuel Tank Capacity: 2,100 Liters

Key Features
·        Continuous action tamping technology

·        High-output railway maintenance capability

·        Integrated recording and measurement car

·        DEUTZ TCD2015V8 diesel engine

·        Automatic ZF transmission system

·        Precision track geometry correction

·        Suitable for large-scale railway maintenance projects

Proven Plasser & Theurer engineering

High mobility with 80 km/h travel speed
