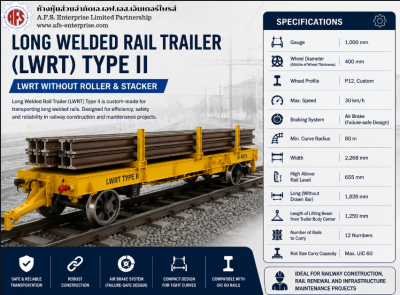

The Long Welded Rail Trailer (LWRT) Type II is engineered for transporting long welded rails during railway infrastructure development and maintenance operations. Unlike the Type III version, this model is designed without roller and stacker systems, providing a simplified and economical rail transportation solution while maintaining excellent operational reliability.

Built for 1,000 mm gauge railways, the trailer can carry up to 12 rails and supports rail profiles up to UIC 60. Its compact design enables operation on railway lines with minimum curve radii of 80 meters, making it suitable for both mainline and maintenance applications.

The LWRT Type II is equipped with a fail-safe air brake system, custom P12 wheel profile, and a robust rail support structure designed to withstand demanding railway operating conditions. Its practical design makes it an ideal choice for rail replacement projects, new track construction, and long rail transportation operations.

Specifications
General
·       Vehicle Type: Long Welded Rail Trailer

·       Model: LWRT Type II – Standard Rail Carrier

·       Application: Long Welded Rail Transportation

·       Track Gauge: 1,000 mm

Dimensions
·       Width: 2,268 mm

·       Height Above Rail Level: 655 mm

·       Length (Without Draw Bar): 1,826 mm

·       Lifting Beam Length from Trailer Center: 1,250 mm

Running Gear
·       Wheel Diameter: 400 mm

·       Wheel Profile: P12 (Custom Design)

·       Minimum Curve Radius: 80 m

Performance
·       Maximum Operating Speed: 30 km/h

·       Braking System: Air Brake (Fail-Safe Design)

Rail Carrying Capacity
·       Maximum Number of Rails: 12 Rails

·       Maximum Rail Profile Capacity: UIC 60

Rail Handling System
·       Standard Rail Support Structure

·       Long Welded Rail Transportation Platform

·       Heavy-Duty Rail Retention System

·       Designed for Safe Rail Movement and Handling

Key Features
·        Custom-built long welded rail transport trailer

·        Carries up to 12 rails

·        Compatible with UIC 60 rail profiles

·        Fail-safe air brake system

·        Compact design for tight railway curves

·        Minimum curve radius of 80 meters

·        Durable custom P12 wheel profile

·        Simple and cost-effective design

·        Ideal for railway construction and rail renewal projects

Applications
·        Long Welded Rail Transportation

·        Railway Construction Projects

·        Rail Renewal Programs

·        Track Replacement Operations

·        Infrastructure Development

·        Maintenance-of-Way Activities
